galfan (5% al zinc) coating steel wire

FOB Reference Price:Get Latest Price
US $800-1,500 / Metric Ton | 20 Metric Ton/Metric Tons for steel wire (Min. Order)
Supply Ability:
1000 Metric Ton/Metric Tons per Month for steel wire
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Steel Grade:
steel
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Place of Origin:
Zhejiang, China (Mainland)
Type:
Galvanized
Application:
Manufacturing
Alloy Or Not:
Non-alloy
Special Use:
Cold Heading Steel
Model Number:
steel wire
Brand Name:
WANSHENG
steel wire:
galfan (5% al zinc) coating steel wire
Packaging & Delivery
Packaging Details
Coil with plastic outside or according to customer's requirement.
Delivery Time
20 working days after receiving the deposit.

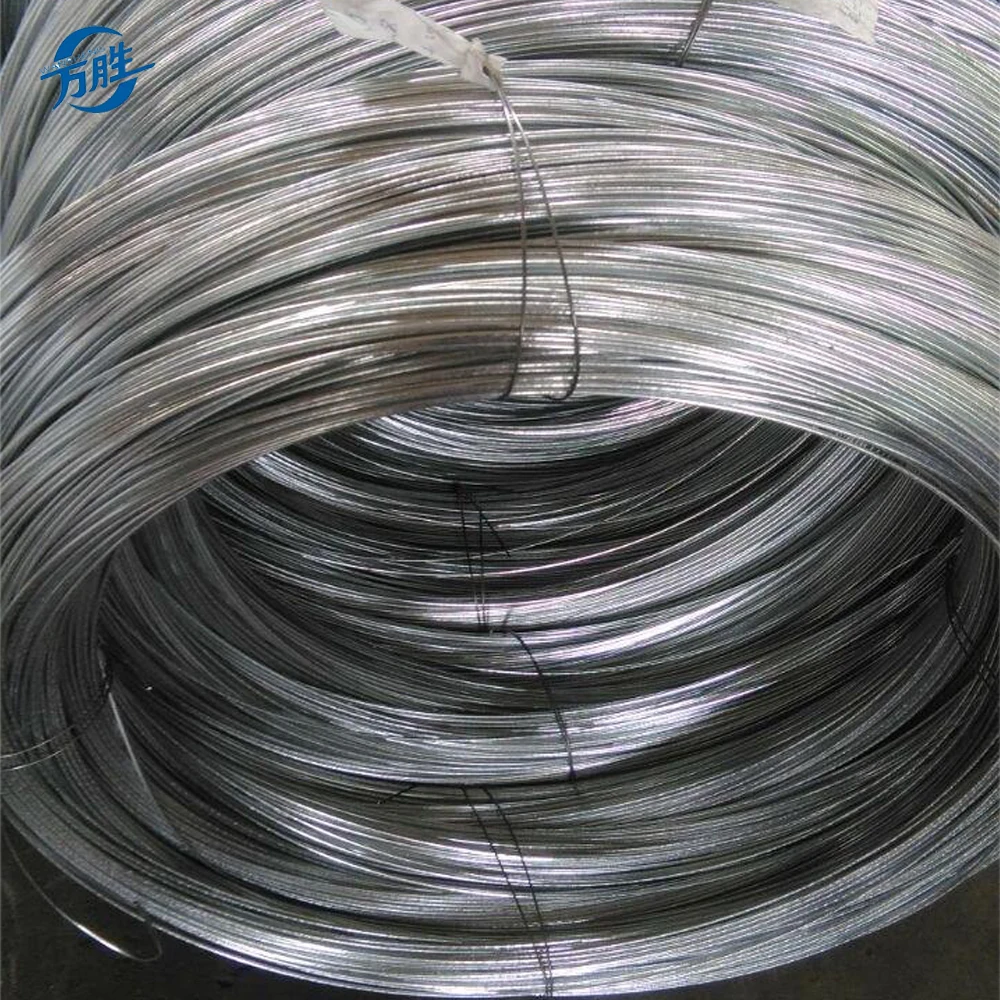

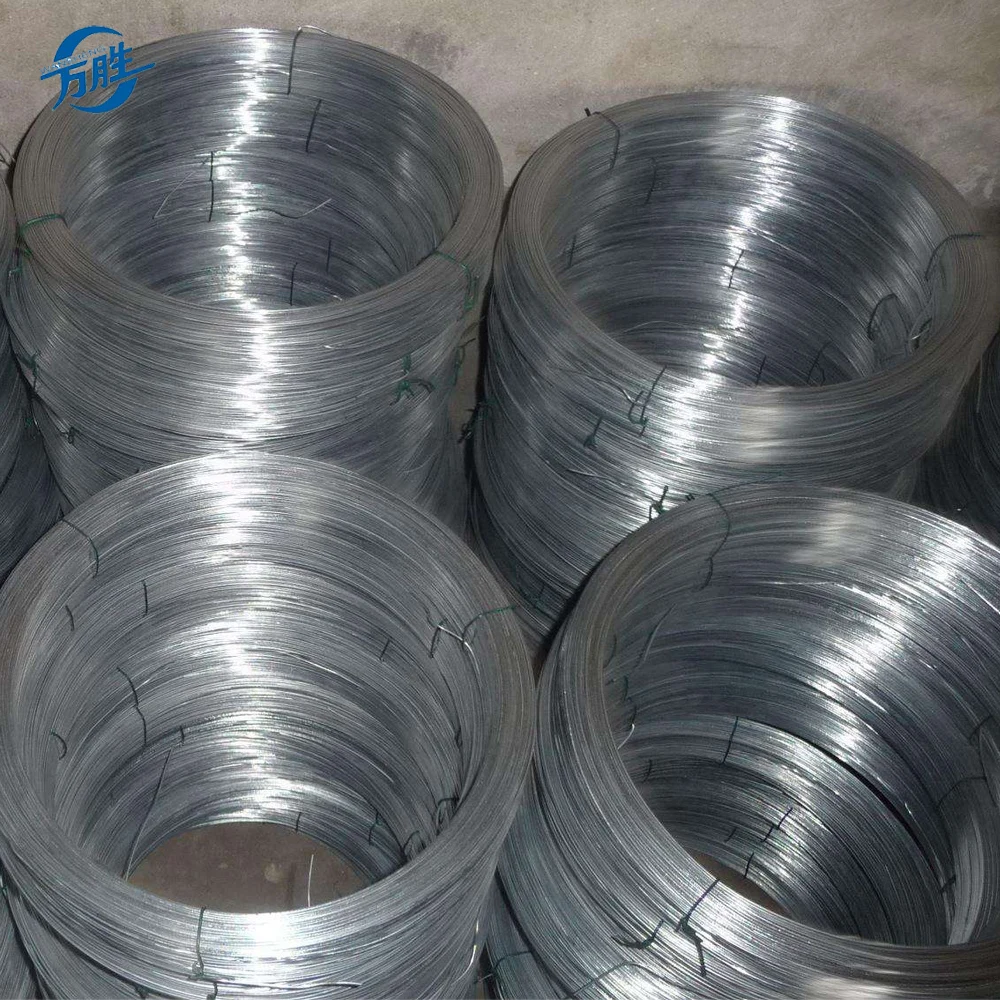

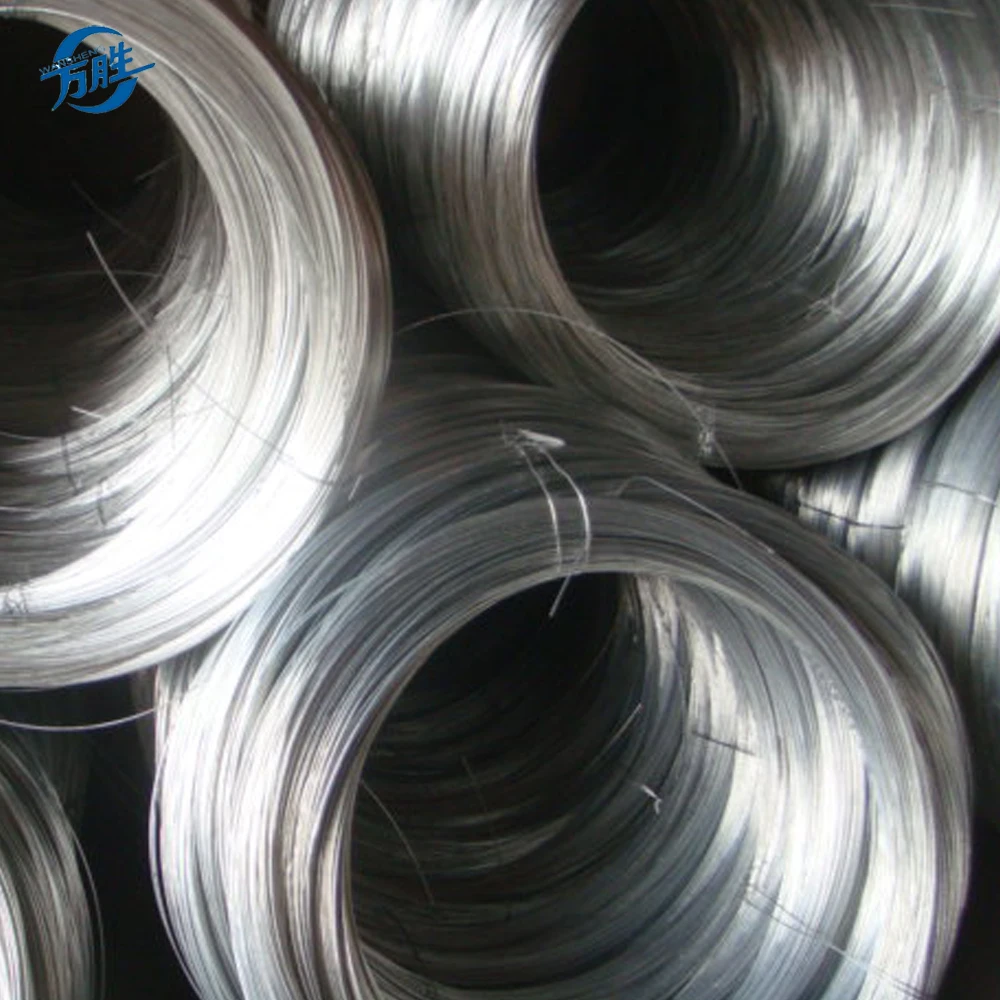

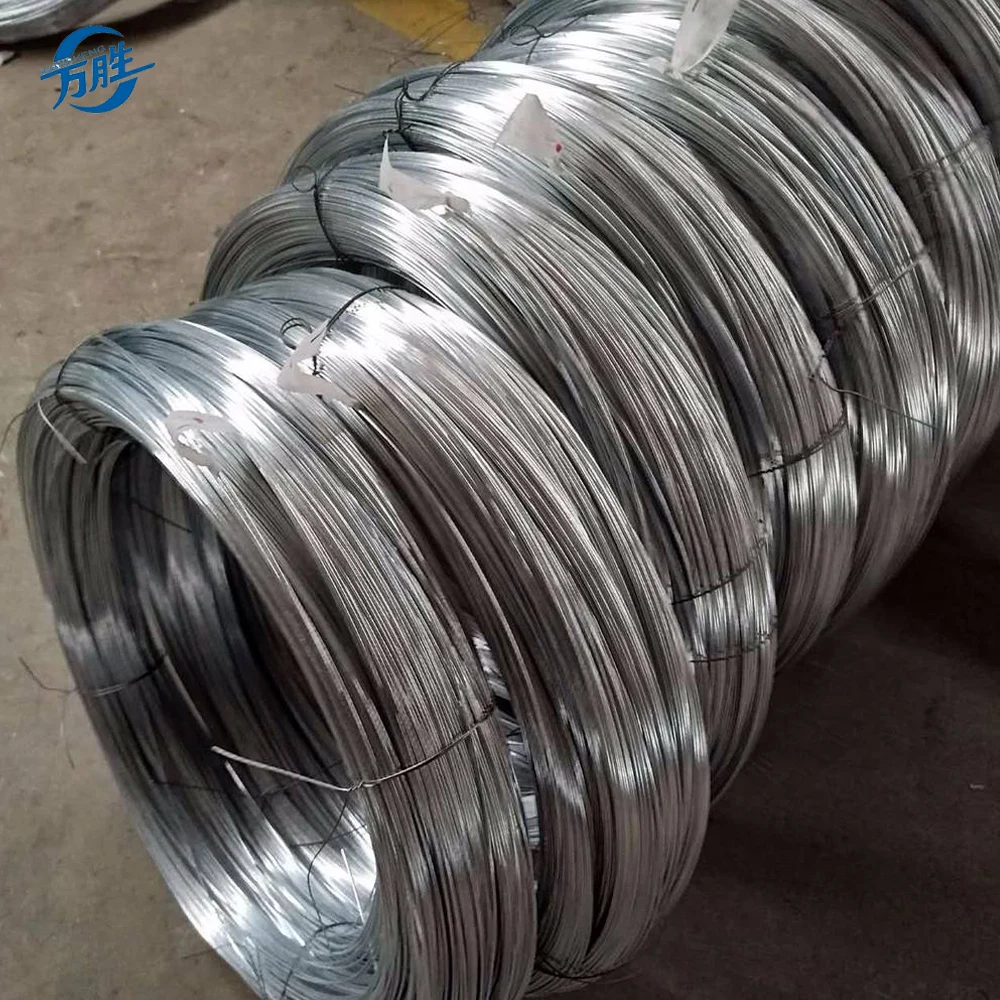

Galfan (5% al zinc) coating steel wire

1.Material: Q195,Q215,Q235,45,65,70, 72A, 72B, 82B, 65Mn
2. Surface Coating:
5% aluminium, 95% zinc coating

3. Characteristic:  Good galvanized,high Quality corrison prevention
                                Excellent mechanical properties

                                Small tolerance

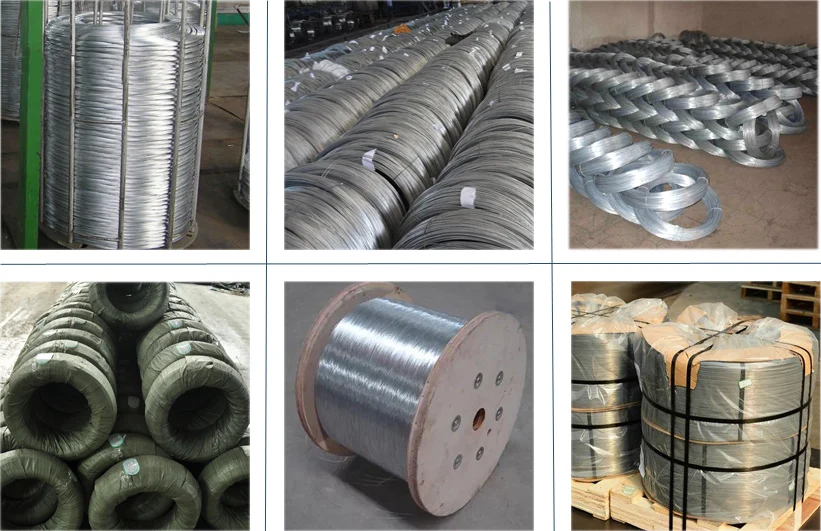

 4. Packing type: Spool; Coil

5. Application:  Being used for the strand conductors in overhead power circuitry

6. Remarks during use and handling:
a. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel wires must be stored in dry and well ventilated indoors
b. Pay attention to the direction of steel wires when paying-off. Be sure the spools or coilis rotating freely as to achieve identical tension of all the steel wires

c.  In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface to guarantee coating



Technical parameters

Strength rankNominal diameter(mm)Tensile strength Mpa>=Stress by 1% elongae Mpa>=Elongation L=250mm>=Number of twists time/360°
Ordinary strength>1.24-2.25134011703.016
 >2.25-2.75131011403.016



>2.75-3.00

1310

1140

3.5

16



>3.00-3.50

1290

1100

3.5

14



>3.50-4.25

1290

1100

4.0

12



>4.25-4.75

1290

1100

4.0

12



>4.75-5.50

1290

1100

4.0

12

High strength

>1.24-2.25

 1450

 1310

 2.5

 16



>2.25-2.75

 1410

 1280

 2.5

 16



 >2.75-3.00

 1410

 1280

 3.0

 16



>3.00-3.50

 1410

 1240

 3.0

 14



 >3.50-4.25

 1380

 1170

 3.0

 12



 >4.25-4.75

 1380

 1170

 3.0

 12



 >4.75-5.50

 1380

 1170

 3.0

 12

 NOTE:Providing engineer design as per customer's request.
